ELASTOMERIC PROFiLE PREVENTS FOREIGN BODY

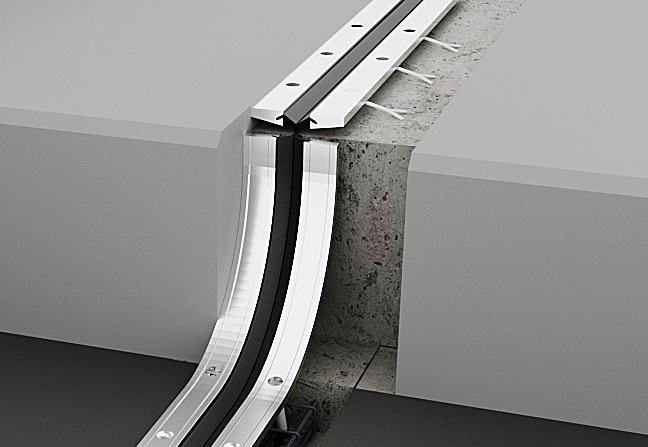

Elastomeric profile which is an extruded synthetic rubber seal of standard AASHTO M251 and EU 1337-3 made of EPDM / CR commonly known as NEOPRENE is inserted between the two elements. The elastomeric rubber seal is end to end continues along the joint length so it prevent any penetration of foreign bodies and provide water proofing against run-off water and also saving sub-structures like Bearing devices and concrete underneath the joint. This section is installed below the surface layer and doesn't resist traffic load. it is removable as well after unlocking it from the interlocking joint system as required for maintenance.
GALVANISED ANCHOR BOLT AND WASHER

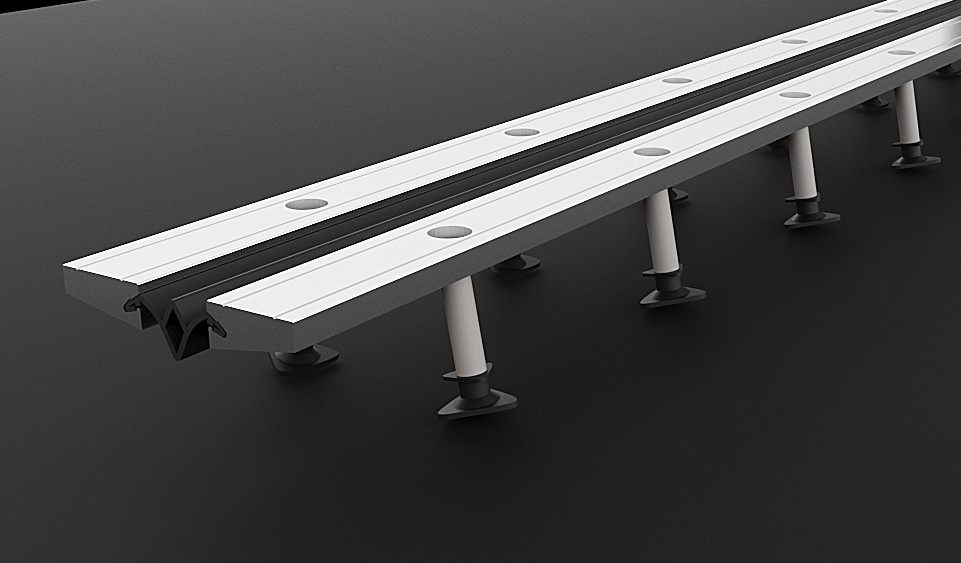

The Anchor Bol! of quality class 10.9 standards is connecting the element to the structure and the washer under the bolt heads is also made of galvanized steel so protective against corrosion. POLYVINYL CHLORIDE (PVC) SHEATH: A protective sheath made up of Polyvinyl Chloride (PVC) is used for protecting the anchor bol! at the time of fresh concrete pouring for easy movability and tightening of bolts with torque wrench for tying in the cast iron socket /anchoring pieces after concrete is cured and settled.
VERTICAL AND SEISMIC MOVEMENT
Vertical movement of structure is possible for jacking purpose without the need to disassemble the joint for maintenance purpose which saves time and money. it is suitable for transverse behavior and earth quake resistance proving it a besi choice for seismic movement. DURABLE FIXATION The metallic element is strongly fixed to the structure by means of 4 pre-stressed tension bolts on each side per meler so the post tensioning provides a permanent compressional stress between the joint and structure which refrain jerking. Woxd can be removed easily since the anchor tension bolts are accessible due to the method of fastening the elastomeric section.
CONCRETE CASTING PRECUATIONS
The casting concrete should be of 6000 psi while the crush used in it should be of 12mm for the besi technical installing of joint and cavity free concrete The Expansion Assembly is to be set for 1.6" (40mm) at 20 C Ambient Temperature. at other ambient temperatures, The Contractor Shall submit to the engineer the proposed setting gap for his approval.
