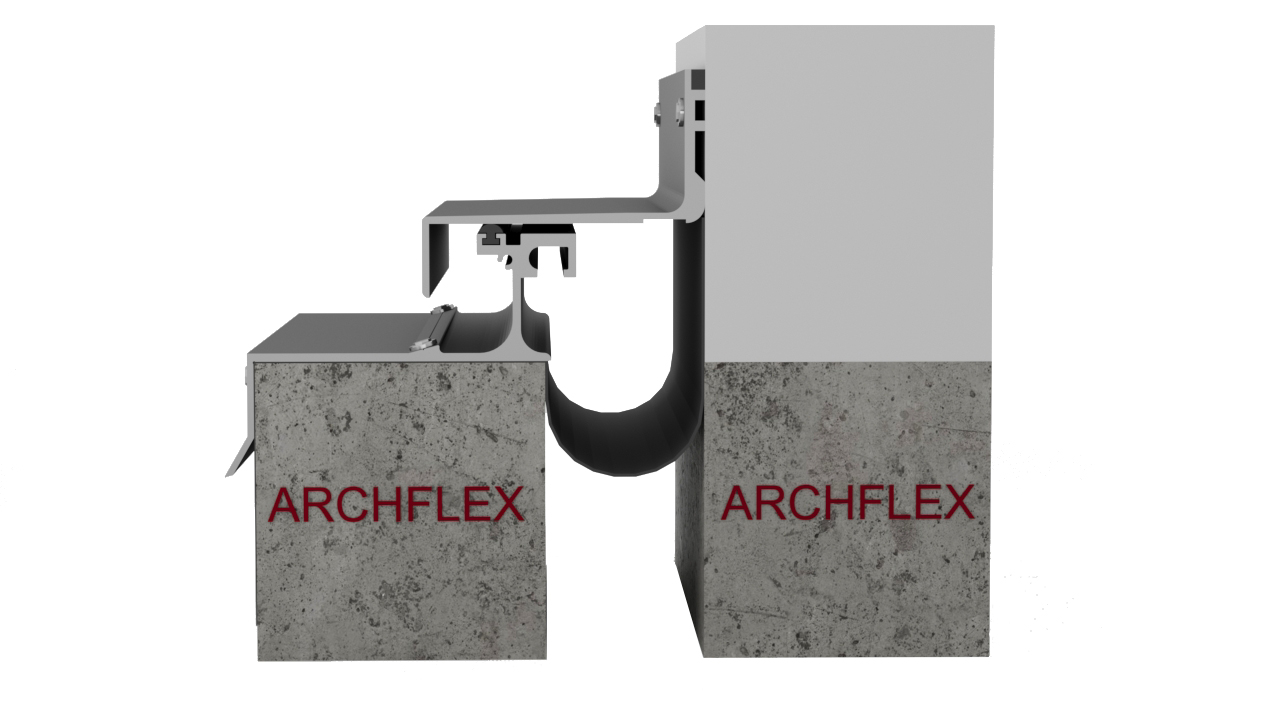

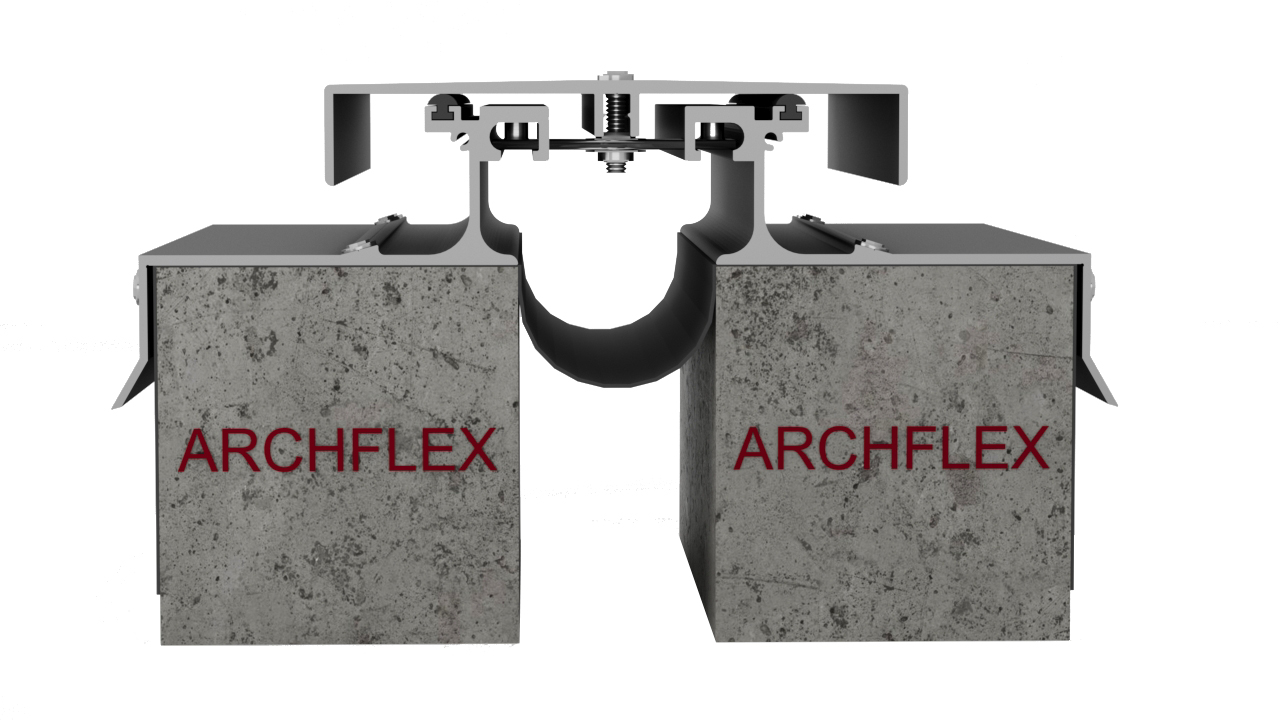

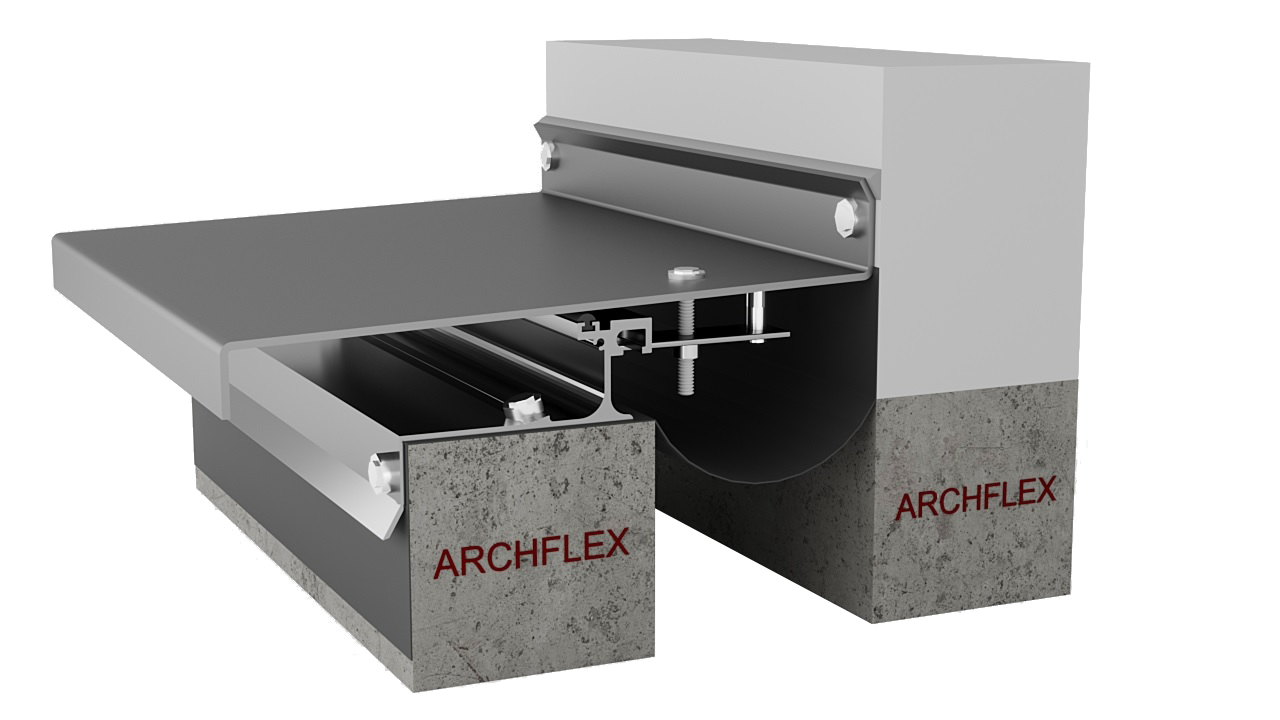

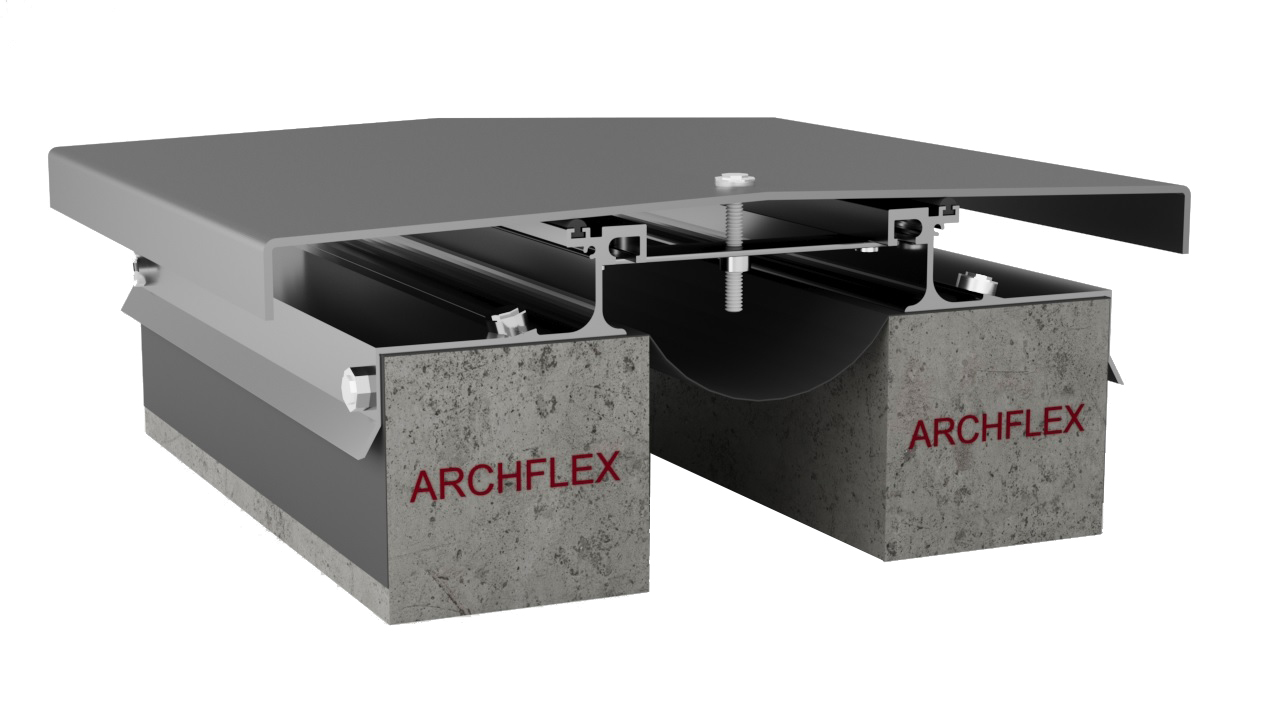

This aluminum roof and wall cover is designed for seismic applications where occasional access is required. Custom factory-made transitions are available to ensure a watertight seal from roof to exterior wall.
ALUMINUM
Extrusion – ARCHFLEX uses multiple alloys & tempers which are established to be the most appropriate for the given use of individual parts. Will be one of the following:(6063-T5, T6, T52) (6061-T5, T6, T51) (6105-T5,T6) (6005-T5)(6005A-T5, T61), ASTM B221
• Sheet – 6061-T6, 3003-H14, 5005-H34, ASTM B209
TURNBAR
• Material – C1075 Blue Temper Spring Steel
• Hardness – RC 44–47
• Finish – “A” Coating (Corrosion Protection).
DURAFXLEX GASKET
• Durometer – 80 Shore A, ASTM D2000
• Color – Black
VAPOUR BARRIER
• Material – 7-Ply Polyethylene, ASTM-E-1745-11
• Color – Black
