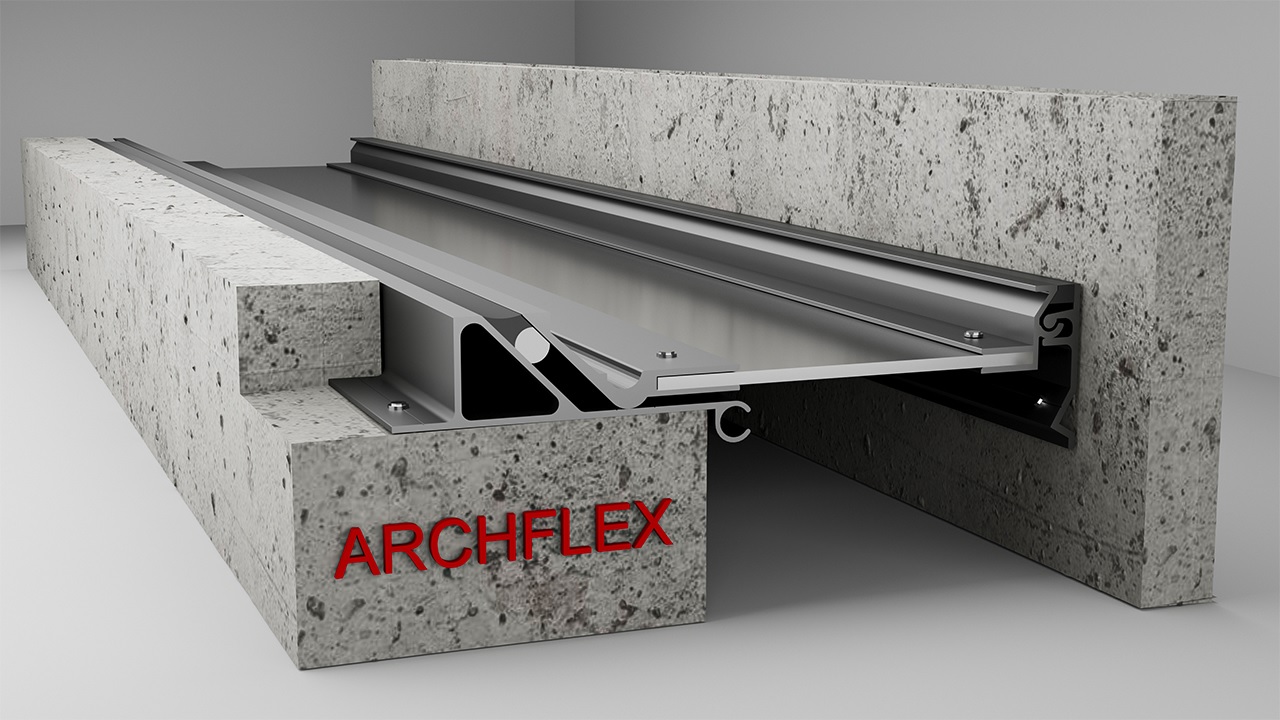

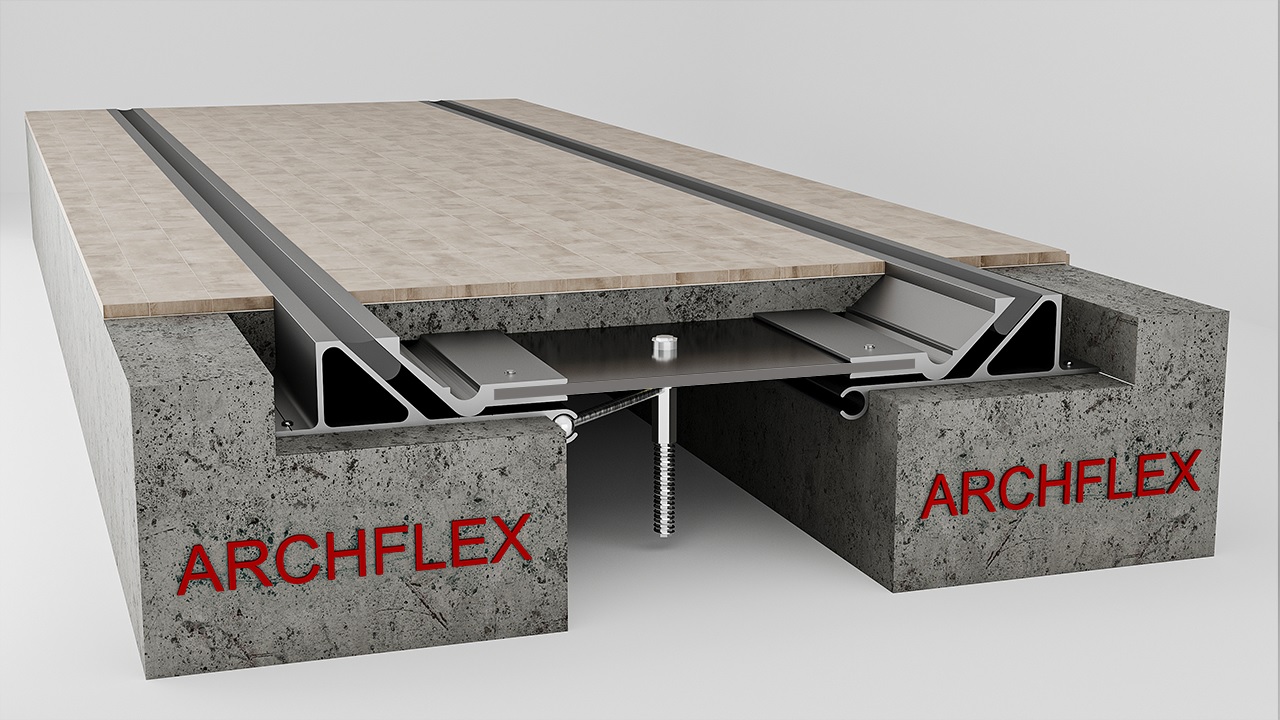

This aluminum cover is designed for interior and exterior seismic applications for cover concealment in deeper floor finishes. The cover plate has a deep recess that accepts thicker floor finish materials up to 25mm. The caulk joints expand and contract for minor thermal movement while the center pan assembly lifts and returns to a normal position after a seismic event. Joint sizes range from 100 mm to 600 mm. Contact factory for larger sizes or custom applications.

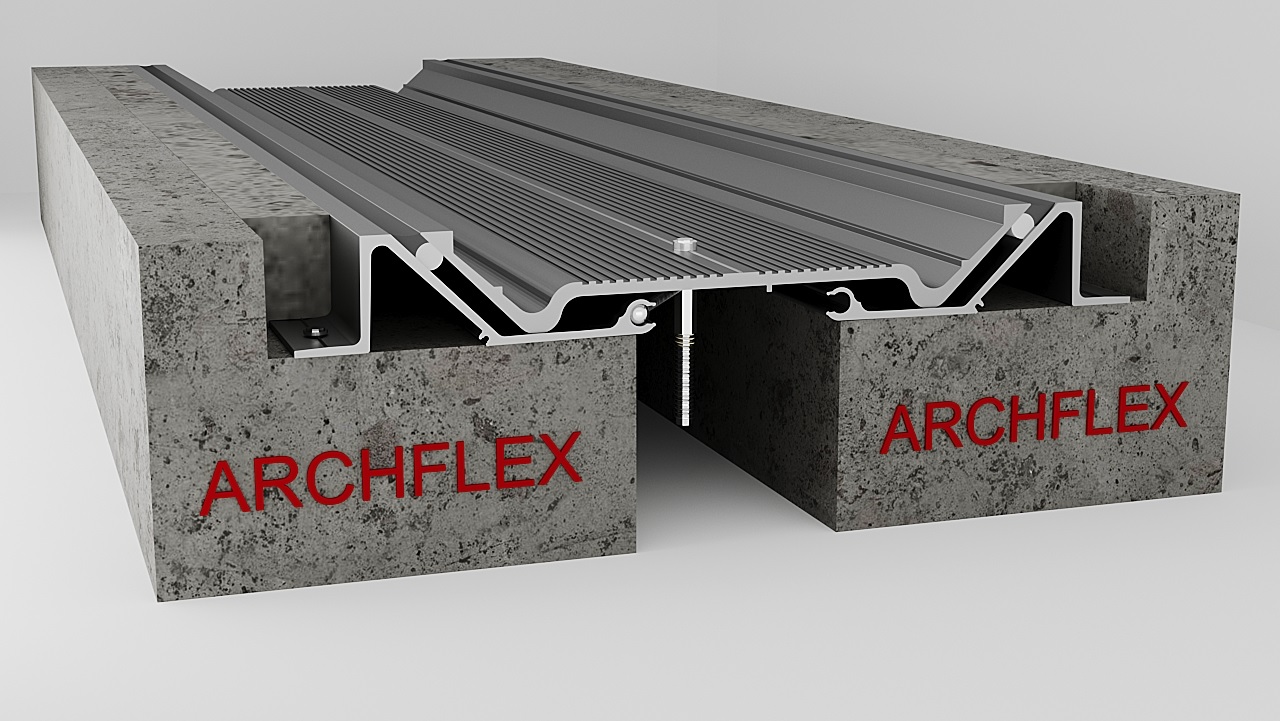

This pan-style floor cover is designed for interior and exterior applications where seismic movement occurs. The side caulk joints expand and contract during thermal movement, and during a seismic event the center pan assembly lifts up as needed and returns to nominal position after the event. The unique system offers a minimal sightline due to the center pan's ability to accept a variety of floor finishes.
Advantages •
Center pan accepts a variety of flooring up to 30 mm thick • Self-centering system • Accommodates a variety of movement requirements, including vertical • Accommodates a variety of loading requirements • Highly customizable system
